About

Description
High Efficient Industrial Power Supply 120W, 48 VDC in slimline package.
  • Output: 48VDC, 2.5A (120W)
  • High efficiency 91% and low power dissipation
  • 150% peak load capability
  • Built-in active PFC function, PF>0.93
  • Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved EN61000-6-2(EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty
    Description
    High Efficient Industrial Power Supply 120W, 48 VDC in slimline package.
    • Output: 48VDC, 2.5A (120W)
    • High efficiency 91% and low power dissipation
    • 150% peak load capability
    • Built-in active PFC function, PF>0.93
    • Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection
    • Can be installed on DIN rail TS-35/7.5 or 15
    • UL 508 (industrial control equipment) approved EN61000-6-2(EN50082-2) industrial immunity level
    • Built-in DC OK relay contact
    • 100% full load burn-in test
    • 3 years warranty
      Dureco by Dureco

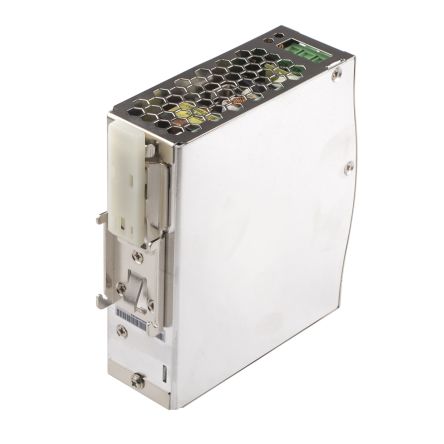

      Power Supply SDR-120-48

      $120.00
      $120.00
      Shipping calculated at checkout.
