Low Profile Multiband Antenna

Low Profile Multiband Antenna

Regular price $85.00 $0.00
Shipping calculated at checkout.

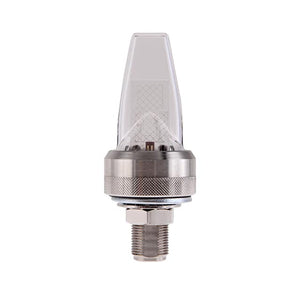

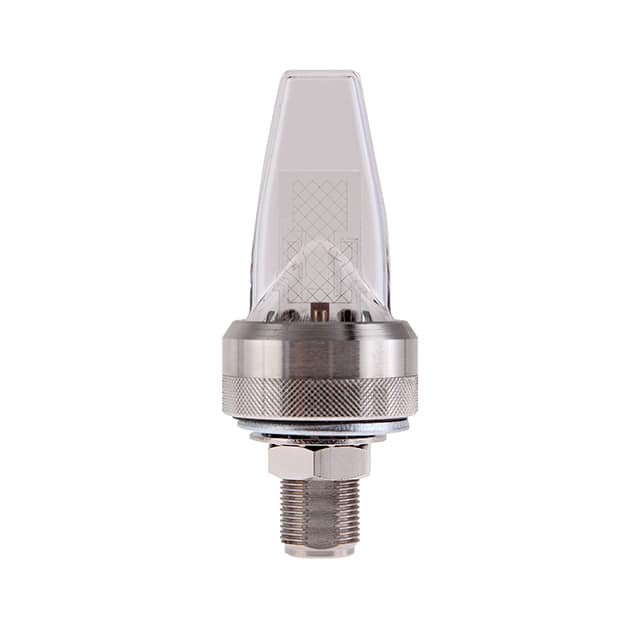

Low Profile Omni Directional Antenna - 698 MHz to 960 MHz, 1710 MHz to 2700 MHz

Low Profile antennas have multitude of applications especially, when they come with high gain as this one. Almost 4dBi in 7.8cm is very good.


Few of applications: Bus / Rail / Transit, IoT - Vending, Metering and Other Industrial Applications, Models Supporting - DSRC, 3G / 4G LTE, ISM, LMR, Public Safety, Wi-Fi, Outdoor Vehicular

  • Frequency: 698 MHz to 960 MHz, 1710 MHz to 2700 MHz
  • N-Type Female connector, direct mount
  • Low Profile - only 7.8cm (total length: 10cm)
  • Diameter: 38 mm
  • Gain: 2.98 dBi, 3.82 dBi
  • Operating temperature: -40/+85 °C
  • IP67 Certified
