Description

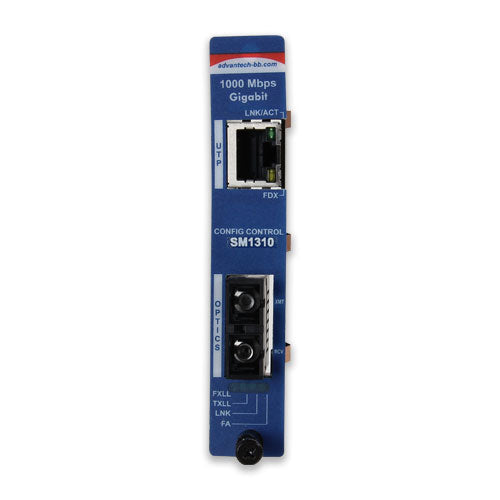

Managed Modular Media Converter, 1000Mbps, Single mode 1310nm, 10km, SC (also known as iMcV 850-15512)
- Variety of choices: multi-mode, single-mode or single-strand including SFP form factor
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
- SNMP manageable
- Supports configuration control
- Supports Link Fault Pass Through (LFPT)
The IMC-771/771 series are slide-in module Ethernet-to-fiber media converter for IMC-7xx chassis, which supports hot-swappable and easy installation, It allows network operators to incorporate multiple fiber types and wavelengths within a network. The IMC-770/771 can be monitored and controlled via central site with IMC-710 SNMP management module by iView2, Telnet or CLI while installed in IMC-71x series chassis. Offering a range of speed up to Gigabit Ethernet and available with SFP or build-in fiber connector: multi-mode, single-mode fiber or double fiber capacity with single-strand which supports the transmission distance from 550m to 70km. The IMC-770/771 series feature in the Link Fault Pass Through (LFPT) functionality, a diagnostic feature that can enable or disable links to assist the end user in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was setup. The IMC-770I-2SFP converter is protocol-independent with dial SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber or multi-mode to single-strand fiber. Its SFP port must use an SFP of the same speed while allowing different fiber types. Additionally, the IMC-770I-2SFP and IMC-771I-SFP are industrial equipment devices. The unit operates in environments that demand extended operating temperatures.
Description
Managed Modular Media Converter, 1000Mbps, Single mode 1310nm, 10km, SC (also known as iMcV 850-15512)
- Variety of choices: multi-mode, single-mode or single-strand including SFP form factor
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
- SNMP manageable
- Supports configuration control
- Supports Link Fault Pass Through (LFPT)
The IMC-771/771 series are slide-in module Ethernet-to-fiber media converter for IMC-7xx chassis, which supports hot-swappable and easy installation, It allows network operators to incorporate multiple fiber types and wavelengths within a network. The IMC-770/771 can be monitored and controlled via central site with IMC-710 SNMP management module by iView2, Telnet or CLI while installed in IMC-71x series chassis. Offering a range of speed up to Gigabit Ethernet and available with SFP or build-in fiber connector: multi-mode, single-mode fiber or double fiber capacity with single-strand which supports the transmission distance from 550m to 70km. The IMC-770/771 series feature in the Link Fault Pass Through (LFPT) functionality, a diagnostic feature that can enable or disable links to assist the end user in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was setup. The IMC-770I-2SFP converter is protocol-independent with dial SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber or multi-mode to single-strand fiber. Its SFP port must use an SFP of the same speed while allowing different fiber types. Additionally, the IMC-770I-2SFP and IMC-771I-SFP are industrial equipment devices. The unit operates in environments that demand extended operating temperatures.
