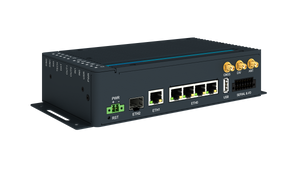

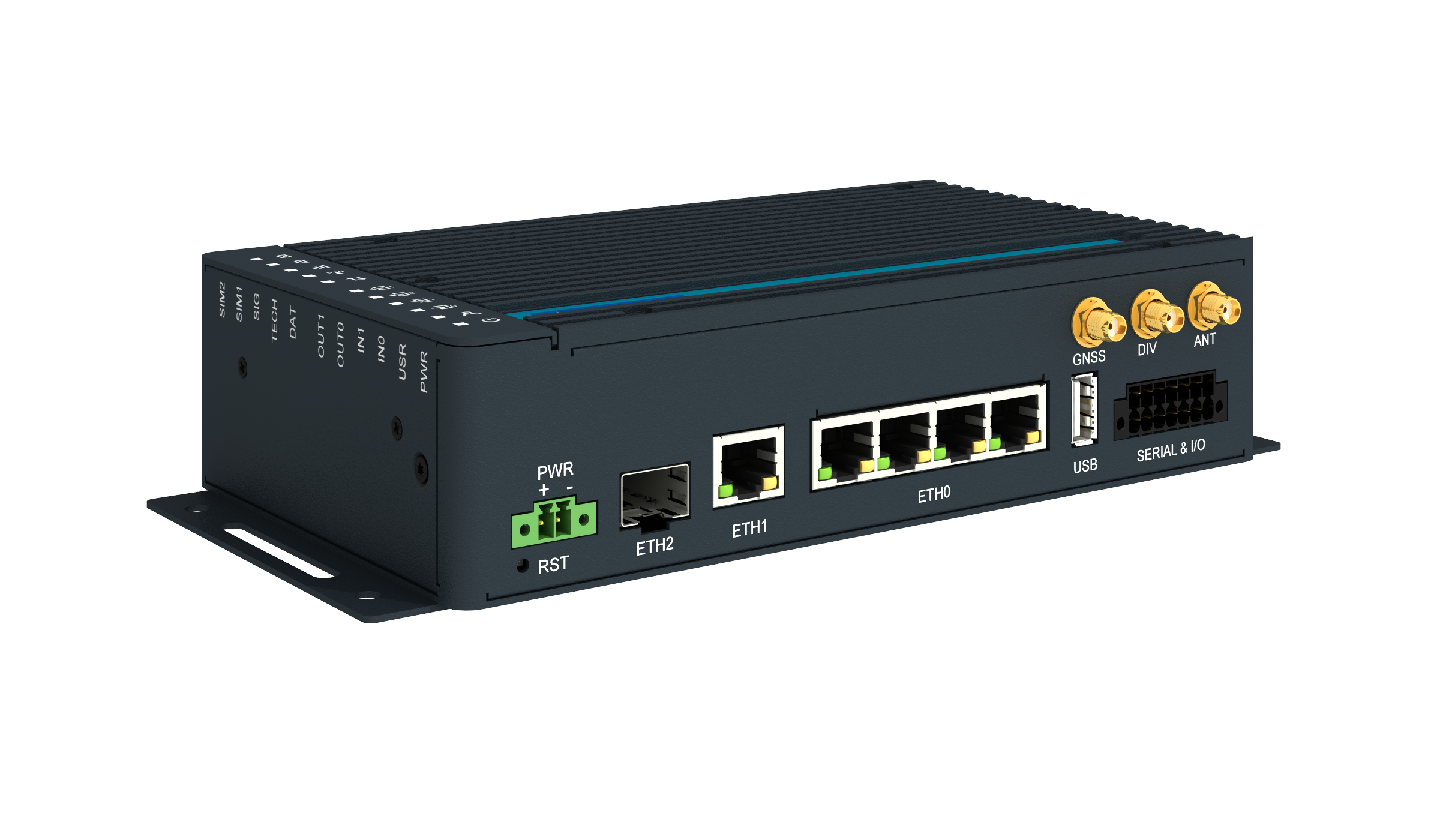

ICR-4434 4G/LTE ROUTER, 5XETH, RS232, RS485, SFP, CAN, 2x I/O

Description

• LTE Advanced Cat.12, Global Cellular Connectivity

• Download Speed Up to 600 Mbps
• Quad-Core CPU with 1GB RAM, TPM 2.0

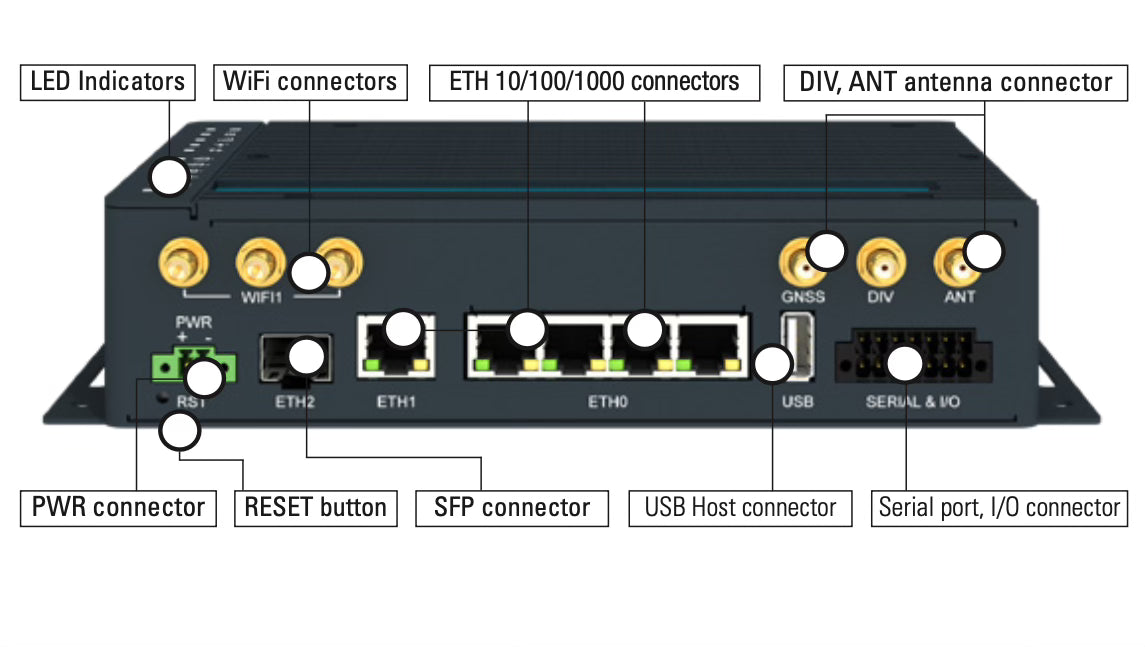

• 5x Gigabit ETH (split into 2 interfaces, configurable as switch)

• Optional 4x PoE+ PSE
• 1x RS232, 1x RS485/422, CAN BUS, USB

•  I/O 2x IN + 2x OUT
• SFP Connector for SFP modules up to 10Gbps
• GNSS Reciver, Micro SD card
• Operating temp.: -40 to +75 °C
• Power supply: 9-48V DC, Sleep mode & Power ignition, Average 5.7W

• Certifications: RCM, AS/CA S0242, AS/NZC 4268
• Modbus RTU/TCP gateway, IEC 60870-5-101 to 104 gateway, DF1, DNP3
• Powerful CPU and Memory, Hosting of SW IoT applications
• Hosting of SW IoT applications - Open Linux, Docker, Node-Red, Node.JS, Python, BASH, C/C++
• Easy remote management and monitoring, SW customisation
• VPN support - WireGuard, Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, DMVPN, IPSec with IKEv1 and IKEv2
• Advanced networking - NAT/PAT, VRRP, SSH, Dynamic DNS client, DNS proxy, VLAN, QoS, NTP Client/ Server, IGMP, BGP, OSPF, RIP, IS-IS, NHRP, SMTP, SMTPS, SNMP v1/ v2c/ v3, Backup routes, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging, Load Balancing, IPv6 Dual Stack

• Firewall - IP Filtering, MAC address filtering, Inbound and outbound Port filtering, DMZ
• Authentication - RADIUS, TACACS+, 2FA, SCEP
• Encryption - DES, 3DES, AES, RSA, MD5, SHA
• Industrial Protocols and IoT - Modbus RTU/TCP gateway, IEC 60870-5-101 to 104 gateway, DF1, DNP3, MQTT, LWM2M
• Firmware Management - Automatic firmware updates - server, locally via LAN or remotely via WAN, Over-the-Air cellular module firmware updates
• Global LTE frequencies and LTE bands support

• Standards: EN 301 489-1,EN 301 489-17, EN 301 489-19, EN 301 489-52, EN 610000-6-2, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
