4FE PoE and 4FE Unmanaged Switch with power booster, 24-48VDC
    4FE PoE and 4FE Unmanaged Switch with power booster, 24-48VDC
4FE PoE and 4FE Unmanaged Switch with power booster, 24-48VDC
4FE PoE and 4FE Unmanaged Switch with power booster, 24-48VDC
    4FE PoE and 4FE Unmanaged Switch with power booster, 24-48VDC
4FE PoE and 4FE Unmanaged Switch with power booster, 24-48VDC

About

Description

4FE PoE and 4FE Unmanaged Ethernet Switch, IEEE802.3af, 24~48VDC, -40~75℃

Description
  • Provides 5/8 Fast Ethernet ports with 4 PoE ports with injector function
  • Supports 10/100 Mbps Auto Negotiation
  • Provides broadcast storm protection
  • Supports Ethernet ESD protection
  • Provides power line EFT protection
  • Provides slim size, DIN-rail/Wall mount with IP30 metal mechanism
  • Supports Redundant 24/48 VDC power input and P-Fail Relay
  • Supports wide operating temperature -40 ~ 75°C
Details

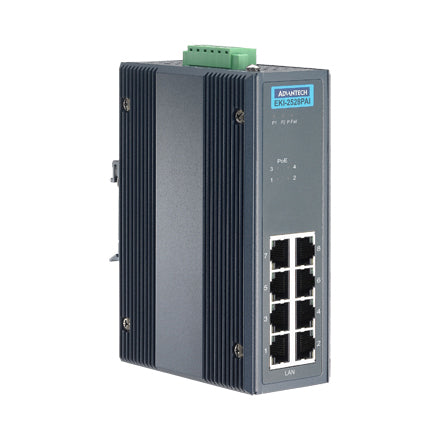

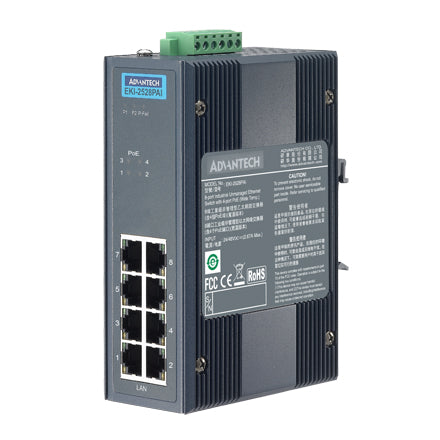

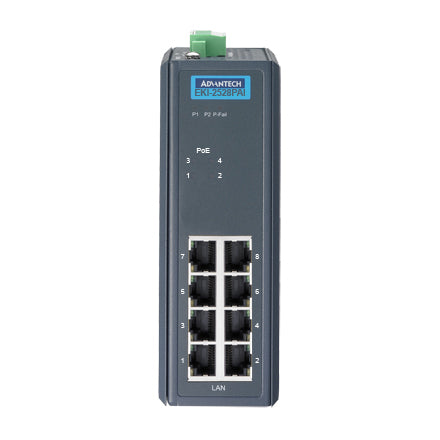

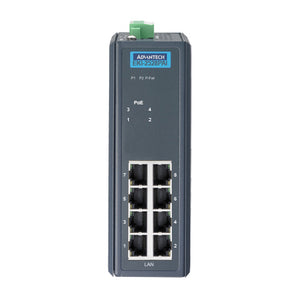

The EKI-2525PA and EKI-2528PAI are a 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that supports 4 PoE ports which are classified as power source equipment (PSE). These PoE devices make centralized power supply possible and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) through Ethernet cable and eliminate the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard features of the EKI family. Furthermore, they offer a 24/48 VDC redundant power input design and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments.

Description

4FE PoE and 4FE Unmanaged Ethernet Switch, IEEE802.3af, 24~48VDC, -40~75℃

Description
  • Provides 5/8 Fast Ethernet ports with 4 PoE ports with injector function
  • Supports 10/100 Mbps Auto Negotiation
  • Provides broadcast storm protection
  • Supports Ethernet ESD protection
  • Provides power line EFT protection
  • Provides slim size, DIN-rail/Wall mount with IP30 metal mechanism
  • Supports Redundant 24/48 VDC power input and P-Fail Relay
  • Supports wide operating temperature -40 ~ 75°C
Details

The EKI-2525PA and EKI-2528PAI are a 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that supports 4 PoE ports which are classified as power source equipment (PSE). These PoE devices make centralized power supply possible and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) through Ethernet cable and eliminate the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard features of the EKI family. Furthermore, they offer a 24/48 VDC redundant power input design and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments.

Advantech by Advantech

EKI-2528PAI | 4FE PoE and 4FE Unmanaged Switch, 24-48VDC

Regular price
$865.00
Sale price
$865.00
Regular price
Shipping calculated at checkout.
