EKI-1222
EKI-1222

EKI-1222

Call For Price

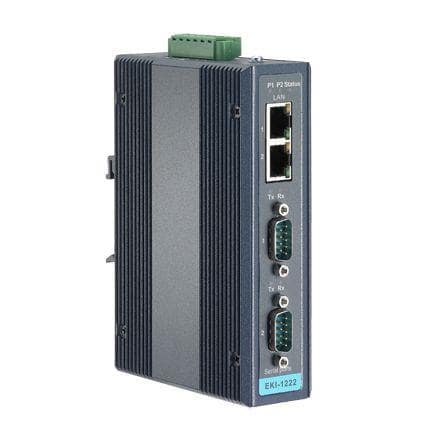

2-port Modbus Gateway

  • Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy

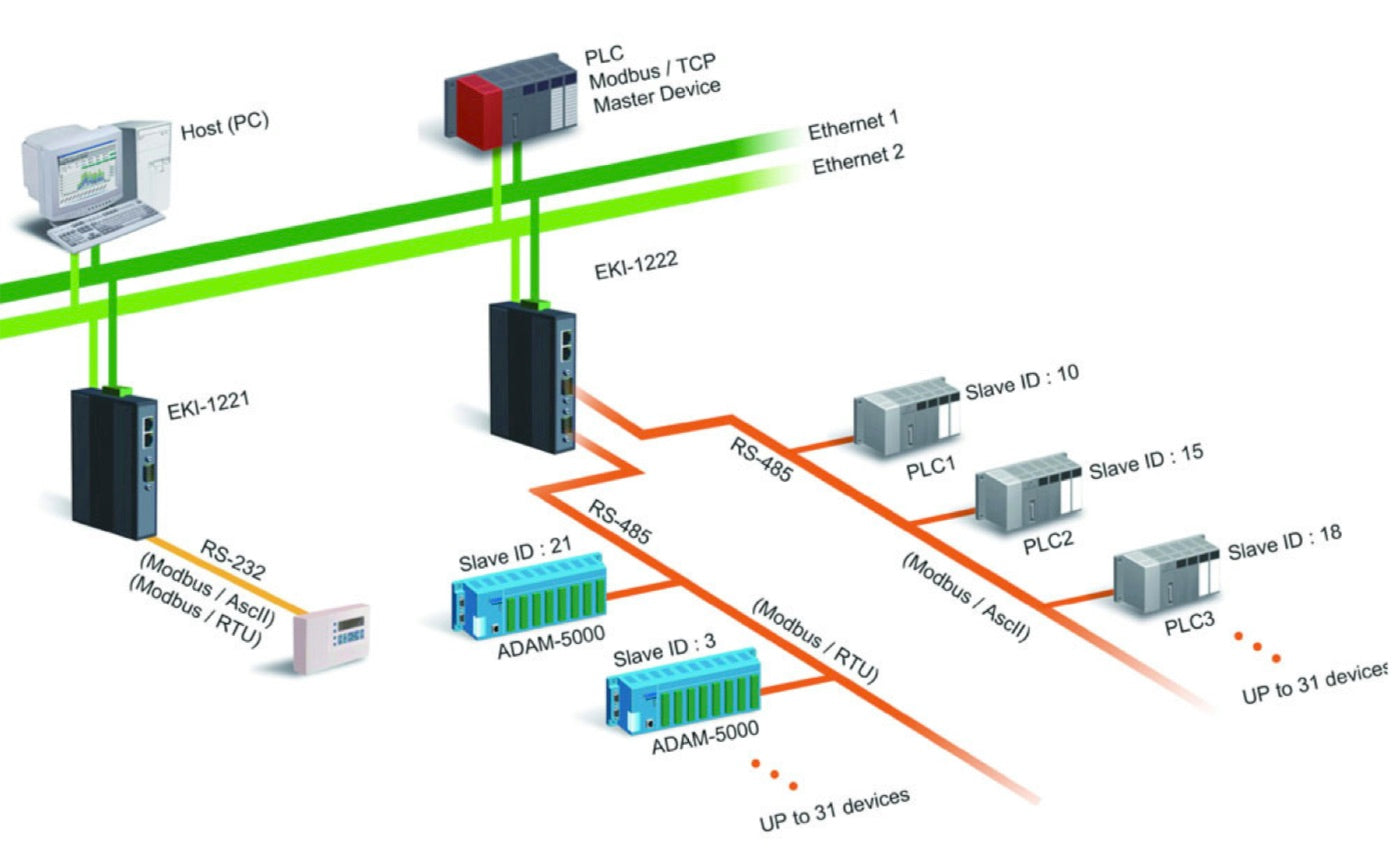

  • Integration of Modbus TCP and Modbus RTU/ASCII networks
  • Supports up to 921.6 kbps, and any baud rate setting
  • support up to 16 connections on each serial port under Modbus Master mode and 32 sessions under Modbus Slave mode.
  • Software selectable RS-232/422/485 communication
  • Mounts on DIN-rail and Wall mount
  • Built-in 15 KV ESD protection for all serial signals
  • Automatic RS-485 data flow control
