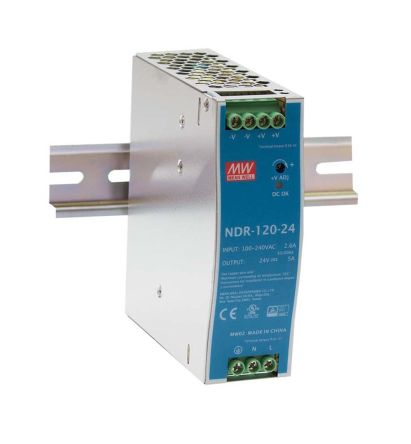

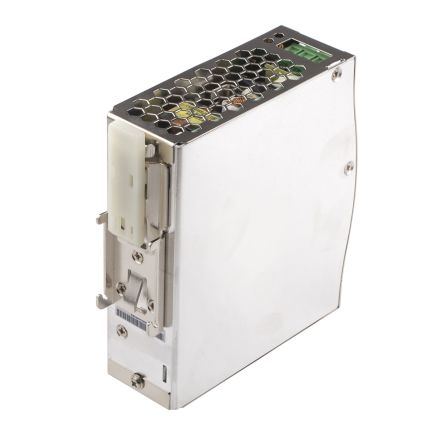

Power Supply NDR-120-48
Power Supply NDR-120-48

Power Supply NDR-120-48

Regular price $70.00 $0.00
Shipping calculated at checkout.
NDR-120 is economical slim 120W DIN rail power supply. The body is designed in 40mm width, which allows space saving inside the cabinets. The entire series can operate at the ambient temperature between -20°C and 70°C under air convection.
Industrial Power Supply 120W, 24 VDC
  • Output: 48VDC, 2.5A (120W)
  • Input voltage: 90 - 264VAC
  • Efficiency up to 88% and low power dissipation
  • Built-in active PFC function, PF>0.93
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 3 years warranty
