No metal 3D Printing? No problem, here's Longchain.

Longchain, nylon filament with extra stiffness. Ideal for metal replacement.

  • Longchain is a technopolymer ideal for metal replacement.
  • Its outstanding characteristics are the best for industrial and technical applications.
  • It can withstand oils, electricity, high and low temperatures, pressure.
  • Very low hygroscopy, no need to worry about humidity anymore.

Suggested printing specification

  • Extruder temperature - 240 C° +10/-5
  • Bed temperature: 90C° +10/-5
  • Print speed: 40-50 mm/s
  • Fan: 0-30%
  • Minimum nozzle dia: 0.35mm

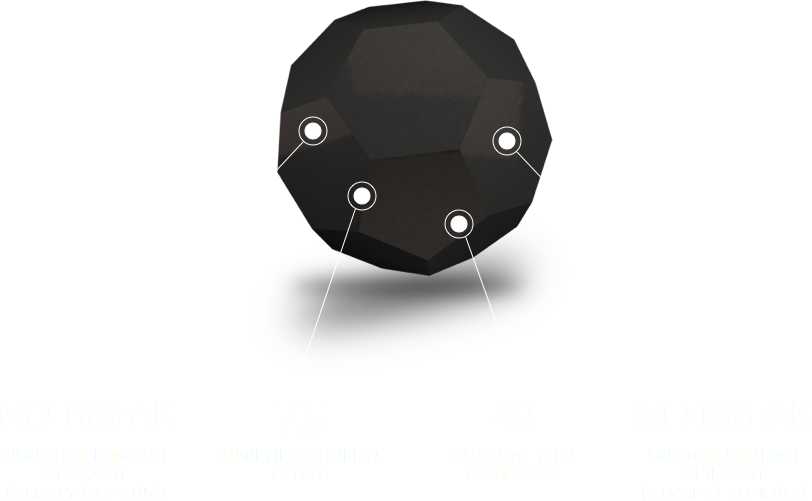

Material properties

  • Diameter: 1.75mm
  • Density: 1 g/cm3 (ISO 1183)
  • Hardness: 75 sh/D (ISO 868)
  • Tensile modulus: 1440 MPa (ISO 527)
  • Melting point: 180°C (ISO 11357)
  • Charpy impact strength, 23°C: NO BREAK kJ/m2 (ISO 179)
  • Charpy impact strength , -30°C: NO BREAK kJ/m2 (ISO 179)
  • Yield Stress: 43 MPa ( ISO 527-2)
Datasheet
